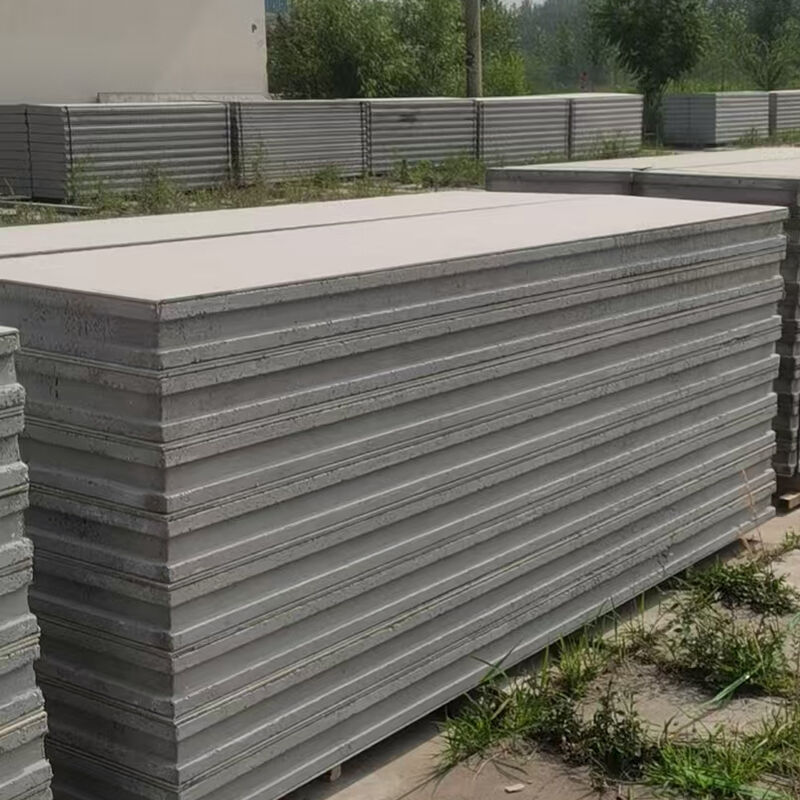

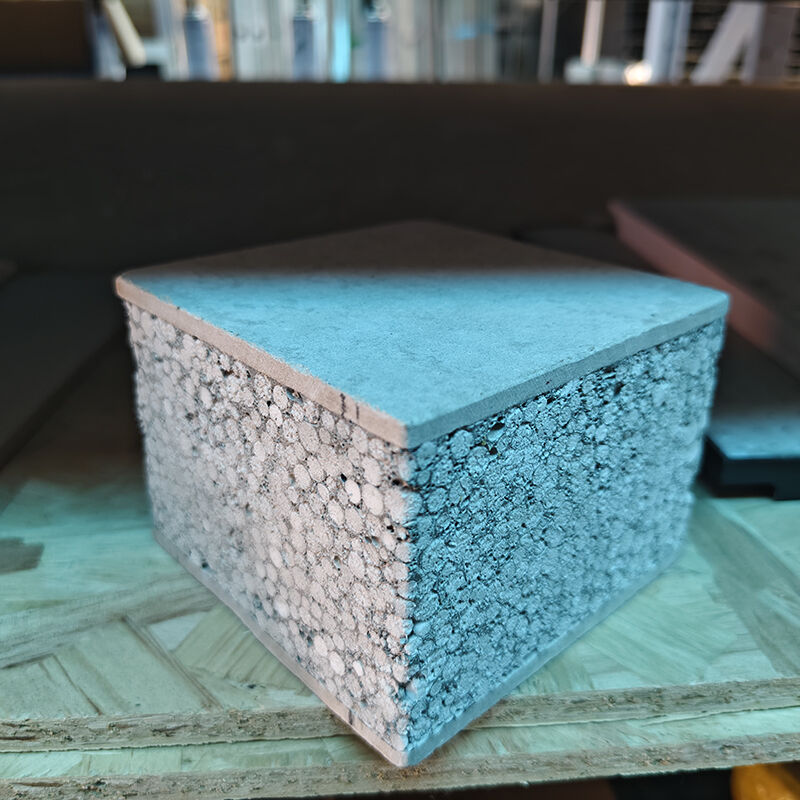

Easy Installation Fast Built Precast Sip Wall Panel Lightweight Concrete Cement EPS Sandwich Panel
Introduction
Calcium silicate board is a tobermorite type hydrated calcium silicate inorganic board made mainly from siliceous materials, calcium materials, and reinforcing fibers through processes such as slurry forming, slab compaction, and steam curing. This board is divided into two categories: insulation and decoration. The thickness of insulation board is mostly above 30mm, with a density of 200-1000kg/m3; The thickness of the decorative board is 4-20mm, and the specifications are mainly 1220 × 2440mm.
During the production process, a crystal structure is formed by steaming at 190 ℃ and 1.2MPa for 24 hours, which has the characteristics of non combustible A1 level, anti-corrosion and anti moth, waterproof and moisture-proof. The product has a dry bulk density of about 600 kg/m3, a flexural strength of over 70 kg/cm2, a thermal conductivity of less than 0.1 kcal/m · h · degree, and a maximum operating temperature of 650 ℃. It can be used for sawing, planing, drilling and other processing, and is applied in the fields of industrial kiln insulation, ship fire prevention and isolation, building interior and exterior wall decoration, and steel structure fireproof wrapping. Deep processed products such as decorative panels and sound-absorbing panels can be made through surface glazing or perforation treatment, and the promotion of prefabricated buildings has accelerated their application in enclosure walls
Features
1. Our board is A-grade fire-resistant. It does not ignite upon contact with fire and does not produce any toxic gases or smoke. It is the best choice for building panels.
2. Dry operation, assembly construction, wall panels can be cut and adjusted in width and length as desired. During the construction process, it has the advantages of simple transportation, short construction period, low material loss rate, and reduced construction waste.
3. The panels can be applied to wet areas such askitchens, bathrooms, basements, etc., andthere will be no condensation in wet weather.
Specification
![]()
FAQ
Q: How long can you delivery the goods?
A: Usual order can delivery in 7-15 days upon receiving deposit payment
Urgent order can be speed production to meet client requirement
Large order can further discussing
Q: Can you offer sample for testing?
A: Of course, we can offer free small sample at your required thickness.
Q: Do you have any certificates or qualifications?
A: Yes. We have passed CE & ISO, and full set of wall panel performance testing report, including Thermal Insulation, Soundproof, Strength testing, Fireproof (performance of our sandwich panel is more than 4 hours in the heat of 1000℃.)
Q: What are the disadvantages of your sandwich panel?
A: Our panel is non-load bearing wall panel, so when build several floors or high-rise buildings, must combine with steel structure or concrete structure.
